Non-Ferrous Shredders

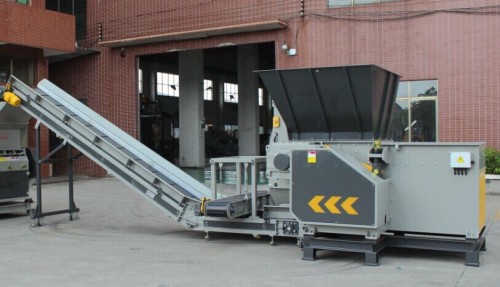

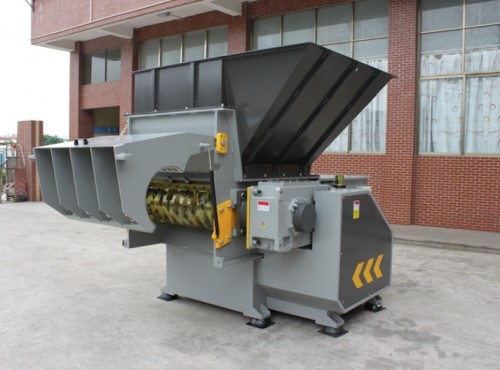

The VISION and BEHEMOTH Series of Shredders are small to medium size reduction machines suitable for processing a wide range of materials to a uniform particle size. The products can often be sold as is, or with additional processing and down stream equipment. Throughputs typically range between 650lb/hr - 11,000lb/hr+ depending on the model, material type and application:
Plastics - Mouldings, Purgings/Lump, Profiles, Films
Timber/Wood - Pallets, Joiners Waste, Green Waste
Paper & Cardboard - Confidential Documents, Production Waste, Packaging Materials
Copper Cable - Household, Telecoms and Industrial Cables including S.W.A
Aluminum - Used Beverage Cans (UBC?s), Swarf, B/X Cables.
Textiles - Carpet (Rolls & Tiles), Garments
Security Destruction - Counterfeit Items, Faulty Goods, Out of Date Stock
Foam - Production Waste

Show Less

The slow speed, high torque operation minimizes noise and power consumption whilst achieving high throughput rates. These machines are particularly well suited for the size reduction of bulky or voluminous materials which could include contamination such as metal or stones.  Can be offered with pushing rams for bulky light material or rotating sorting screens to provide uniform shred and recirculate large scrap back into the shredding system.

Typical Applications Include:
Plastics - Mixing Plastics, Plastic Drums or Containers
Electronic Scrap - WEEE Directive Materials
Tires - Car Tires, Debeaded Truck Tires
Wood - Pallets
Packaging Materials - Cardboard
Metals - Lead, Aluminum, Copper
Textiles

Show Less

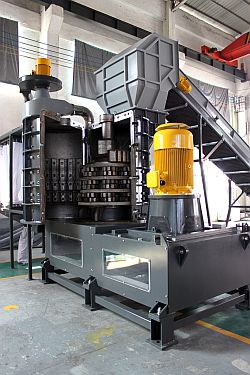

The OZMA Vertical Hammer style shredders are mainly applied in applications where further processing is required from pre-shredded metal scrap from a slow speed, high torque two shaft shredding system.  These machines aggressively size reduce and densify pre-shredded material whilst liberating the various different fractions and allow for better downstream separation and reduced transport costs,  The breakers or smasher in the upper part of the chamber break apart the material until it is small enough to enter the gap between the milling rings and chamber liners.  When the material enters the second stage, the milling rings impact, grind and roll the material into clean fragments. When crushed into small enough pieces, the balled up material falls into the lower chamber.  It is then ejected by the discharge paddle. The three stages above create a product that is both clean and high in bulk density suitable for transportation

Show Less

The Synth Raspers are advanced, heavy duty size reducers combining the benefits of both granulators and single shaft shredders in one unit. These machines operate at medium speed with high torque. This in turn results in minimum levels of fines and also uniform product size. The machines are suitable for plastics processing and more commonly rubber products where there is metal contamination i.e. tires. We offer two different rotor configurations to suit the various applications. The serrated edged blade is an aggressive cut which is well suited to secondary processing of tires to free tire steel.  The more conventional straight edge blade is ideal for crumbing rubber, cable granulation and secondary processing of pre-shredded E-waste/WEEE i.e. circuit boards etc.

The Raspers are used in a wide range of applications worldwide, below is a list of typical applications:
Pre-shredded tires - Car Tires, Truck Tires and OTR tires
Electronic Scrap - Circuit Boards, Cell Phones, Automotive Radiators, Aluminium Profiles etc
Plastics with Metal Contamination - Copper Cables with Insulation, Reinforced Pipes & Hoses

Show Less

The XENO series twin shaft shredders are extreme high torque, high throughput shear type size reduction machines often used for pre-shredding large volume or high strength materials which may contain contamination.  The unique modular split chamber design, provides excellent access to key components therefore reducing maintenance downtime and service costs which is a huge advantage when comparing machines of this size. Typical Applications Include:
Tires - Car, Truck and O.T.R. (Off The Road ? Earthmovers etc.)
Electronic Scrap - WEEE Directive Materials
Wood/Timber - Pallets, C&D Waste etc.
Aluminum - Castings, Profiles, etc.
Steel - Car Body Shells, Sheet Scrap, Drums etc.
Bulky Waste - Mixed Household, Commercial, Pulper Waste from Paper Industry

Show Less

The KING KONG Series of Shredders are heavy duty size reduction machines suitable for processing a wide range of materials.  These shredders are ideal for the size reduction of flexible and/or medium hardness hollow products, loose bales, PE film, woven bags and more. The fast acting, PLC controlled swing pusher automatically forces material to the rotor according to motor amp loads which maximizes material throughput. Machine capacities typically range between 3300lb/hr – 19800lb/hr+ depending on the model, material type:
·Plastics–Mouldings, Purgings/Lump, Profiles, Films
·Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials
·Copper Cable–Household, Telecoms and Industrial Cables including S.W.A
·Aluminum–Used Beverage Cans (UBC’s), Swarf, Cables
·Textiles–Carpet (Rolls & Tiles), Garments etc.
·Security Destruction–Counterfeit Items, Faulty Goods
·Foam–Production Waste
·Household & Commercial Waste–RDF/SRF Production

Show Less
